Water Tank Kits
We can build you a tank to fit your needs. From 2,000 gallon to 6,000 gallon. All of our tanks are built in house from 36 Mild Steel 3/16 thickness. Each tank is welded 100% at each seam, baffle, and tanks head. There are pressed ribs on the heads, and we provide superior strength. We can install our tanks on your truck chassis or ours. Our truck chassis inventory changes weekly, so please call for our current inventory or click HERE. We can ship you a superior tank kid for you to install including additional options to meet your needs. All our tanks include Schedule 40 plumbing.
We offer 3 tyles of drives to meed your needs.
- The 1st type is shaft driven. In this design, the water pump is driven by a drive shaft powered by a Power Take Off. That mounts to the transmission. This design is the most popular. With regular maintenance your water truck PTO, drive shaft, and water pump with provide seasons of use.
- The 2nd type is hydraulic driven. In this design, the water pump is driven by high pressure hydraulic fluid. A Direct Mount PTO will have a coupled hydraulic pump that provides 2,500 psi of fluid turning a hydraulic motor coupled to the water pump. This design allows the water-pump to be mounted in many areas, either on DS or PS of the truck frame, on the front corner of the tank or on the rear of the tank.
- The 3rd type is the gasoline water pump. This design is simple, yet effective. With pressure to operate a few spray heads at once, its an option where transmission has no access to PTO provision, or no provision at all. The pump can be mounted in many areas.
Conventional Tanks
This design is industry-proven, offering a semi-elliptical, self-supporting design that provides years of service. We can custom build this style in taller and longer lengths. For longer tanks, a full belly plate is required to protect the tank floor from cracking due to added size and weight.
2,000 gallon with suggested use on singe rear axle chassis with minimum 25,000 GVW refer to your states bridge law for on highway capacity.
2,500 gallon with suggested use on singe rear axle chassis with minimum 33,000 GVW refer to your states bridge law for on highway capacity.
4,000 gallon with suggested use on tandem rear axle chassis with minimum 48,000 GVW refer to your states bridge law for on highway capacity.
5,000 gallon with suggested use on tandem rear axle chassis with minimum 66,000 GVW refer to your states bridge law for on highway capacity.
We fabricate all tanks in house and can build tanks of any size. Please contact us with you questions and needs.

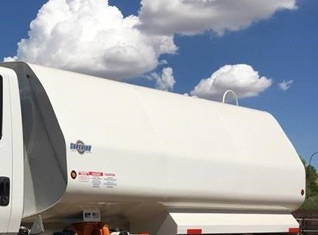

Clearview Tanks
This design is a different approach to traditional tank designs. With a pyramid type design, the tank will carry a lower center of gravity. The narrower upper portion of the tank provides more visibility in mirrors. We can also build this tank to your specifications, including making it taller, wider, and/or longer. (Full belly plate required in longer tanks to protect tank floor).
2,000 gallon with suggested use on singe rear axle chassis with minimum 25,000 GVW refer to your states bridge law for on highway capacity.
2,500 gallon with suggested use on singe rear axle chassis with minimum 33,000 GVW refer to your states bridge law for on highway capacity.
4,000 gallon with suggested use on tandem rear axle chassis with minimum 48,000 GVW refer to your states bridge law for on highway capacity.
5,000 gallon with suggested use on tandem rear axle chassis with minimum 66,000 GVW refer to your states bridge law for on highway capacity.
We fabricate all tanks in house and can build tanks of any size. Please contact us with you questions and needs.
